What are the symptoms of a failing CRDi diesel injector?

A rough idle that smooths out above 1 500 rpm, hard cold start, black smoke under load, occasional white smoke at cold start, a knock-like tick at idle, fuel smell in the engine oil, P0201-P0204 injector circuit codes and P1186 correction-limit codes. Power loss under load is a later-stage symptom.

How much does it cost to replace Hyundai CRDi injectors in South Africa?

A full set of four OE Bosch injectors for a D4CB (H1 / Sorento) costs R14 000-R18 000 plus R3 500-R6 500 fitment with ECU recoding. The 2.2 D4HB set runs R16 000-R20 000. Reconditioned-by-Bosch sets save 30-40% if you can verify the rebuild house. Cheap unbranded aftermarket injectors at R4 500 a set are a false economy.

Can I drive my Hyundai with a faulty CRDi injector?

Short-term yes, but raw diesel washes the cylinder bore oil film away and dilutes the engine oil — driving for weeks on a failing injector will damage the piston rings and bore wall. If the engine is dumping fuel into the oil sump, the oil level will rise on the dipstick and the diesel will dilute the protective oil film. Sort it within a week of diagnosis.

Do CRDi injectors need to be coded to the ECU?

Yes. Bosch and Delphi piezo and solenoid injectors carry a serial number (IMA / IQA code) printed on the injector body. After fitment, the code must be entered into the ECU via a scan tool that supports Hyundai-specific injector coding. Without this step the engine will run roughly because the ECU has no idea what flow characteristic the new injector has.

Why do my Hyundai CRDi injectors keep failing?

Three usual causes: SA diesel fuel quality (especially at non-branded forecourts and during winter additive transitions), extended fuel-filter intervals (the book says 30 000-45 000 km but SA conditions warrant 20 000), and a failing in-tank lift pump or tank sock filter passing particles. Change all four injectors together, so the ECU is not balancing one new injector against three worn ones.

Can I clean my CRDi injectors instead of replacing them?

Bosch Diesel Centres can ultrasonically clean and re-test injectors, and it is worth doing before condemning a set — pull the injectors, send them in, and if the test bench shows them in spec you have saved a lot of money. But if the pintle nozzle is worn or the piezo stack is degraded, no cleaning will restore them; you need replacement. Budget about R450-R650 per injector for clean and test.

How long should Hyundai CRDi injectors last?

In SA service, expect 150 000-200 000 km on the original set if you stick to a 20 000 km fuel filter change and avoid contaminated fuel. Long-haul highway-driven H1s sometimes see 250 000 km on the originals; stop-start delivery vans can fail at 120 000 km if the fuel filter has been neglected. The set is a wear item — budget for it.

Hyundai CRDi Injector Failure: Signs & Cost

The short answer: a failed common-rail injector on a Hyundai CRDi engine almost always announces itself with a tickover-rough idle that goes away at higher revs, occasional black smoke under load, and a check-engine light flagging P0201-P0204 (cylinder-specific injector circuit) or P1186 (excessive injector compensation). Replacing all four with OE Bosch or Delphi units is a significant job — see the indicative cost table below, and get a quote for your exact engine.

Key Takeaways

Hyundai CRDi injectors are common-rail piezo-electric or solenoid units made by Bosch, Delphi or Denso
Failure pattern: rough idle, hard cold start, black smoke, P020x codes, occasional rail-pressure low (P0087)
Most common at 150 000-200 000 km in SA fuel conditions
Replace as a set of four — running mismatched ages causes correction-factor drift
Always recode the new injector serials to the ECU after replacement
Cheap aftermarket injectors will be a false economy — stick with OE Bosch / Delphi / Denso

Which Hyundai Engines Are We Talking About?

Hyundai CRDi (Common Rail Direct Injection) covers a wide range of diesel engines in SA:

Engine	Capacity	Common Models	Injector Brand
D3EA	1.5L	Getz, Matrix, early Accent	Bosch CRI
D4FB	1.6L	i20 (PB), i30 (FD/GD)	Bosch CRI 2.x
D4FA / D4FD	1.5/1.7L	i20, i30, ix20	Bosch CRI
D4EA	2.0L	early Tucson (JM), older Santa Fe	Bosch CRI
D4HA	2.0L	Tucson (LM/TL), ix35	Bosch piezo
D4HB	2.2L	Santa Fe (CM/DM/TM), Sorento	Bosch piezo
D4CB	2.5L	H1 / iLoad, Sorento	Bosch piezo
J3	2.9L	Terracan	Bosch CRI

All of these use a common-rail high-pressure fuel system (rail pressure 1 600-2 200 bar depending on year). The injectors are the highest-wear consumable on the engine.

Hyundai CRDi diesel injector replacement

CRDi Diesel Injectors

Ask us for a quote on injectors for D4CB, D4HA, D4HB, D4FB and other CRDi engines. Whoever fits them must code each new injector to the ECU and fit new copper sealing washers.

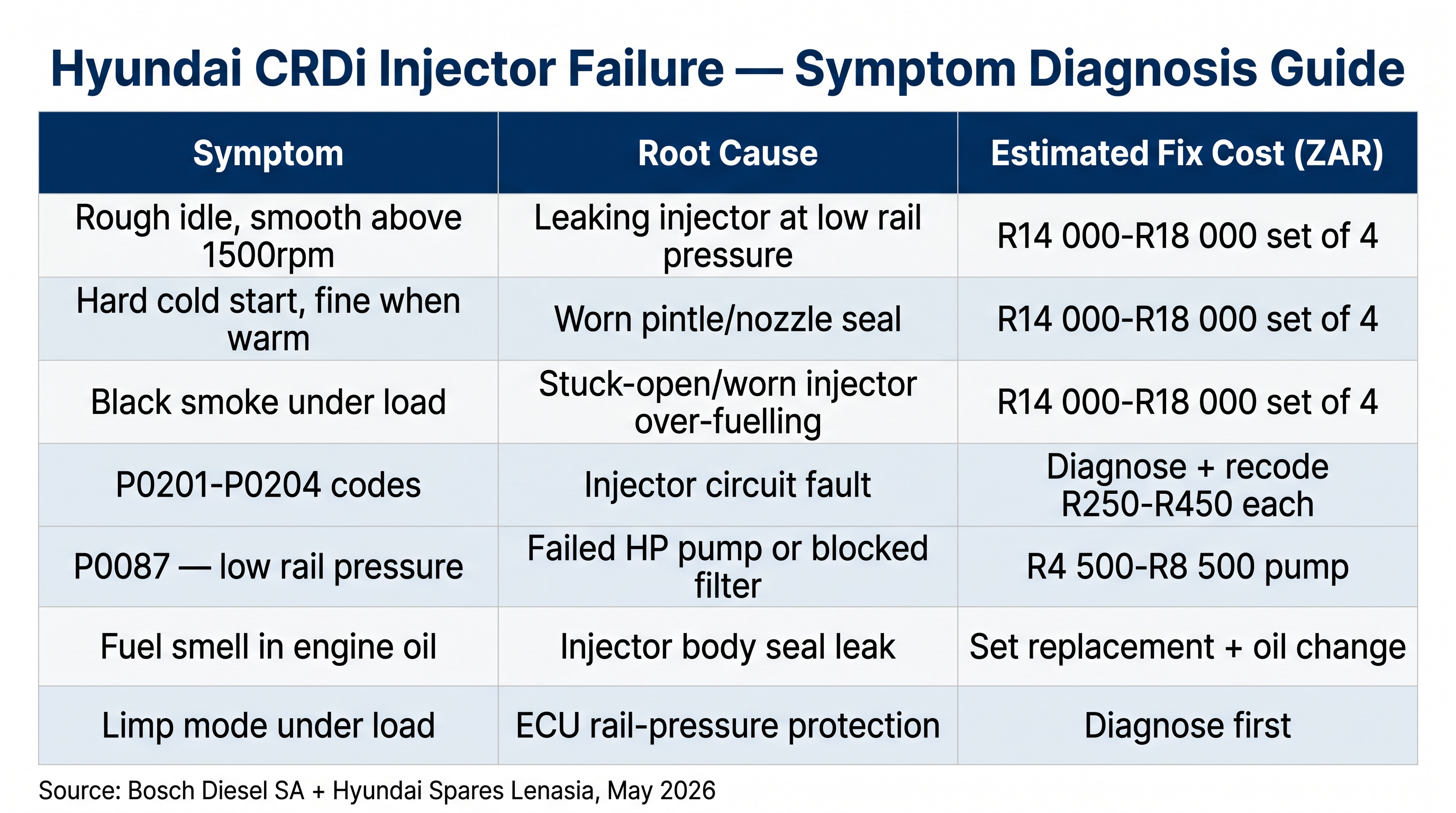

Symptoms That Point To Injectors

Run through this checklist. The more boxes you tick, the more likely it is an injector problem rather than a fuel pump, rail-pressure sensor or DPF issue.

Rough idle that smooths out above 1 500 rpm — a leaking injector dumps too much fuel at low rail pressure
Hard cold start, fine when warm — worn pintle / nozzle, leaking when seal pressure is low
Black smoke under acceleration — over-fuelling from a stuck-open or worn injector
White / grey smoke on cold start — incomplete combustion from poor spray pattern
Knock-like tick at idle — diesel knock from injector dump
Fuel in the engine oil — wash-down from a leaking injector body seal (smell the dipstick)
Limp-mode under load — ECU pulls back when it can't maintain rail pressure
Power loss / hesitation at part throttle — correction-factor saturation

Diagnostic Test Sequence

Before you condemn injectors, work through this sequence. Several other things mimic injector failure.

1. Pull live data

Connect a proper diagnostic tool (a generic OBD reader won't show you what you need). Read injector correction factor or balance values (sometimes called IQA or IMA) per cylinder. Healthy injectors sit at correction values between -3.0 and +3.0 mm³/stroke. A value beyond ±5.0 is an injector at the end of its life.

2. Read rail pressure

At idle, rail pressure should be in the 220-300 bar range; at full throttle 1 600-2 000 bar+. If the engine can't maintain commanded pressure, you may have a high-pressure pump failure rather than injectors.

3. Check return flow (back-leak test)

Disconnect the leak-off return pipes from the top of each injector, run T-pieces into clean measuring tubes, and run the engine for a defined period (consult engine-specific service manual). If one injector returns dramatically more diesel than the others, that injector's pintle is leaking internally.

4. Compression test

A wet compression difference on a cylinder can mimic an injector problem. Rule out mechanical issues before throwing R8 000 of new injectors at the engine.

5. Read DTCs

Code	Meaning
P0201 - P0204	Injector circuit, cylinders 1-4
P1186	Injector circuit / correction limit
P0087	Fuel rail pressure too low
P02EE - P02F1	Cylinder balance / contribution faults
P024D / P024E	Cylinder cut-off

Replacement Cost In SA

Job	Price Range (R)	Notes
1 x OE Bosch injector (D4CB)	R3 800 - R5 200	Cylinder set price discounted vs single
Set of 4 OE Bosch injectors (D4CB)	R14 000 - R18 000	Recommended approach
Set of 4 OE Bosch injectors (D4HB 2.2)	R16 000 - R20 000
Set of 4 reconditioned injectors	R7 000 - R12 000	Acceptable if from reputable rebuild house
Set of 4 cheap aftermarket	R4 500 - R7 000	Avoid — false economy
Fitment labour (4-cyl CRDi)	R3 500 - R6 500	Includes recoding to ECU
ECU recoding (per injector)	R250 - R450	Sometimes included with fitment
New copper washer set	R250 - R450	Always replace with new injectors

Indicative ranges only, not quotes; prices vary by condition, mileage, supplier and labour rate.

Why You Should Replace All Four

Hyundai (and Bosch / Delphi) engineer the engine to balance fuel delivery across cylinders using a correction factor per injector. When you replace just the failed injector, the new unit has fresh-from-factory tolerances while the remaining three have 150 000+ km of wear. The ECU's correction algorithm has to compensate, which:

Forces the new injector to over- or under-fuel to match the worn three
Drags down power and economy
Re-creates the rough idle within 20 000-40 000 km

Always replace as a set of four (or six on a V6), recode all to ECU, and the engine will run like new.

Aftermarket vs OE — Don't Be Tempted

Cheap no-name aftermarket injectors are a false economy: if they wear quickly, the engine is back to rough-idling and smoking and you pay for the job twice. Stick with Bosch, Delphi or Denso OE-spec units. A reconditioned-by-Bosch injector from a reputable diesel pump room is fine — a R1 200 generic-brand injector with no traceability is not.

ECU Recoding And Diesel Diagnostics

A new injector carries a serial number that must be coded to the ECU before the engine will run properly. A Bosch Diesel Centre or diesel specialist with a Hyundai-capable scan tool can do the coding.

Preventing Injector Failure

CRDi injectors die from three causes: contaminated fuel (the biggest one in SA, especially in rural areas with iffy diesel stock), extended service intervals on the fuel filter, and small particles working through after a faulty in-tank lift pump fails.

To extend injector life:

Change the fuel filter every 20 000 km without fail (Hyundai book is 30 000-45 000 — too long for SA fuel)
Run an annual fuel-system flush with a quality diesel system cleaner
Replace the in-tank lift pump and fuel-tank sock filter at 200 000 km regardless of symptoms
Avoid filling at unbranded forecourts in remote areas
