Hyundai Engine Codes Explained
Short answer: for best used engine to buy and drop in, our top three at Hyundai Spares are the G4FC 1.6 Gamma (millions made, parts everywhere, the safest bet in petrol), the D4CB 2.5 CRDi (the H1 / Sorento / H100-late workhorse), and the G4ED 1.6 Alpha (the older Accent / Getz / Matrix engine — almost indestructible).
Engines to think twice about: the early Theta II 2.0 / 2.4 rod-bearing recall units, the high-mileage D4HB 2.2 CRDi if injector and EGR records are unknown, and the older G6BA 2.7 Delta V6 because parts availability is dropping.
Key Takeaways {#key-takeaways}
- Best petrol used engine: G4FC 1.6 Gamma — high availability, low parts cost, simple architecture
- Best diesel used engine: D4CB 2.5 CRDi — bombproof H1 / Sorento workhorse if injectors are fresh
- Best small-engine pick: G4ED 1.6 Alpha — older Getz/Accent/Matrix engine, simple and forgiving
- Avoid: 2010-2015 Theta II 2.0/2.4 with unknown rod-bearing history; D4HB 2.2 with poor maintenance records
- Used engine prices in SA: R8 500 (Atos 1.1) to R55 000+ (Lambda V6, D4HB)
- Always demand a compression test certificate and 3-month minimum warranty
How We Rank Engines
We stock and ship used engines daily from our Lenasia South yard. The rank below reflects:
- Field reliability — what fails first, at what mileage
- Parts availability — both at our yard and broader SA aftermarket
- Repair cost — head, valves, timing components, sensors
- Resale of the engine itself — some engines hold value, others don't
The Top Three Used Engines
1. G4FC 1.6 Gamma — Best All-Round Petrol
Fitted to the Hyundai i20 (PB and GB), i30 (FD and GD), Accent (RB), Elantra (HD and MD) and the Kia Cerato sister cars. Naturally aspirated, multi-port injection (not GDI on most SA variants), iron-block, alloy head, chain-driven cam.
What we like:
- Timing chain, not belt — no scheduled big-spend service item
- Iron block tolerates SA fuel and the occasional overheat
- 110 hp, modest stress
- Reconditioning parts are cheap and everywhere
- A drop-in tested used unit costs R12 000-R18 000 in SA
Watch out for:
- Carbon build-up on the GDI variants (rare in SA spec — most G4FCs here are MPI)
- VVT solenoid faults causing rough idle at hot start
- Timing chain stretch beyond 250 000 km — listen for rattle at start
2. D4CB 2.5 CRDi — Best Diesel Workhorse
Fitted to the H1, iLoad, iMax, Grand Starex, Sorento, and later H100s. Common-rail turbo diesel, iron block, 16-valve DOHC. Made by Hyundai since 2001 and updated multiple times — the post-2015 unit is significantly improved over the early versions.
What we like:
- Bombproof bottom end — we routinely see 400 000+ km without crank or rod failure
- Common parts across multiple model lines (huge SA aftermarket)
- 125-130 kW depending on year, 392-441 Nm of torque
- Works hard at low revs — perfect for SA highway cruising
Watch out for:
- Injectors are the headline wear item — see our CRDi injector failure symptoms guide
- Turbo actuator (electronic on post-2010 units) sticks if EGR carbon coats it
- Used engine price range R28 000-R45 000, drop-in fitted from R35 000
3. G4ED 1.6 Alpha — Old-School Reliability
Fitted to the Hyundai Getz, Accent (LC/MC), Matrix, early i30. SOHC or DOHC depending on year, iron-block, belt-driven cam. Production ran 1999-2011 in SA-market vehicles.
What we like:
- Genuinely hard to kill — we have customers running 380 000+ km G4EDs as taxi-replacement vehicles
- Service parts cost nothing — plugs, belts, oil filters are all sub-R300
- Used engines plentiful, R8 500-R13 500 for a tested unit
- Forgiving of poor maintenance (within reason)
Watch out for:
- Belt-driven cam — replace at 60 000 km without exception. Snapped belt = bent valves.
- Knock sensor harness can crack and short, throws P0325

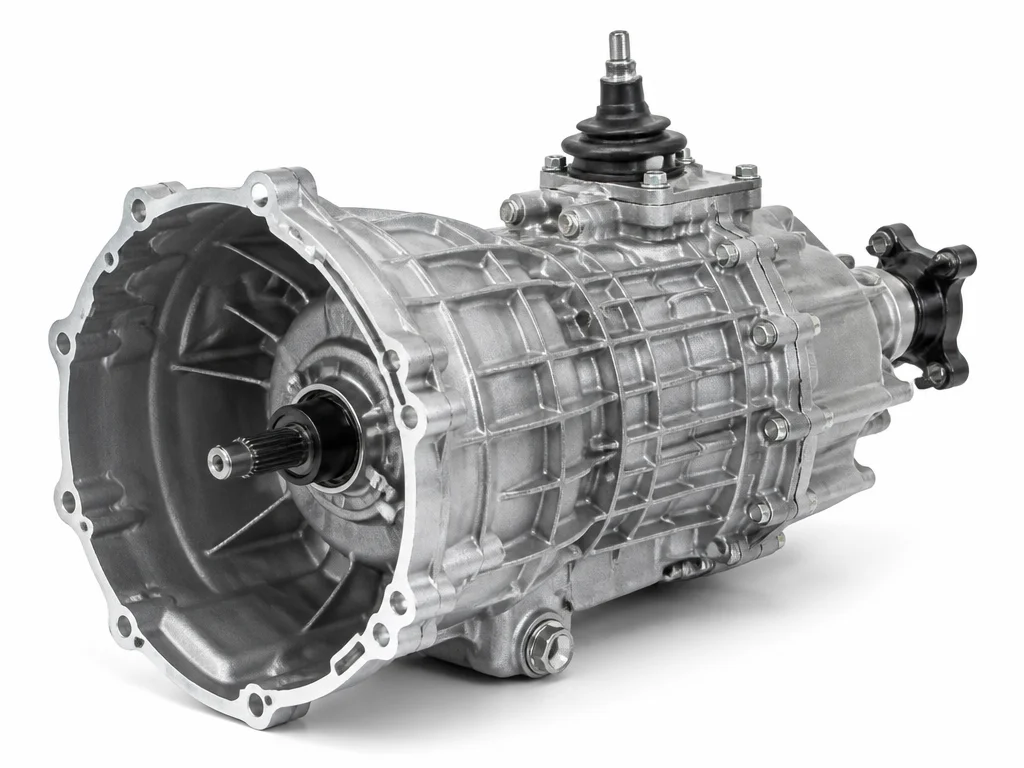

Engine + Gearbox Combos
When an engine swap is on the cards, buying the matched gearbox at the same time saves on courier costs and ensures matched ECU programming. We stock complete drivetrains for most model lines.
The "Be Careful" List
Theta II 2.0 / 2.4 (G4KD, G4KE, G4KJ) — 2010-2015 Production
Subject to the well-publicised global engine-knock recall — see our Tucson Theta II 2.0 fault guide for the full breakdown. A used Theta II from a known-mileage donor with verified service history is fine; a yard engine of unknown provenance is a gamble. Always insist on a compression test certificate and listen for rod knock at hot idle before parting with money.
D4HB 2.2 CRDi — High-Stress Diesel
The 2.2 CRDi in Santa Fe (CM, DM, TM) and Sorento is a great engine when maintained, but it carries higher wear stress than the 2.5 D4CB. Common issues at 150 000+ km: EGR cooler cracking, turbo wastegate actuator sticking, and the well-known oil-pump-balance-shaft assembly noise — see our dedicated D4HB 2.2 CRDi problem guide.
G6BA 2.7 Delta V6 — Parts Drying Up
Found in older Sonata (NF, EF), Tucson JM, Trajet, and Tiburon GK. The engine itself is decent but it's a 20-year-old V6 with declining parts availability for things like coils, intake manifold gaskets and timing belt tensioners. Reconditioning costs more than buying a Lambda V6 from an Azera donor.

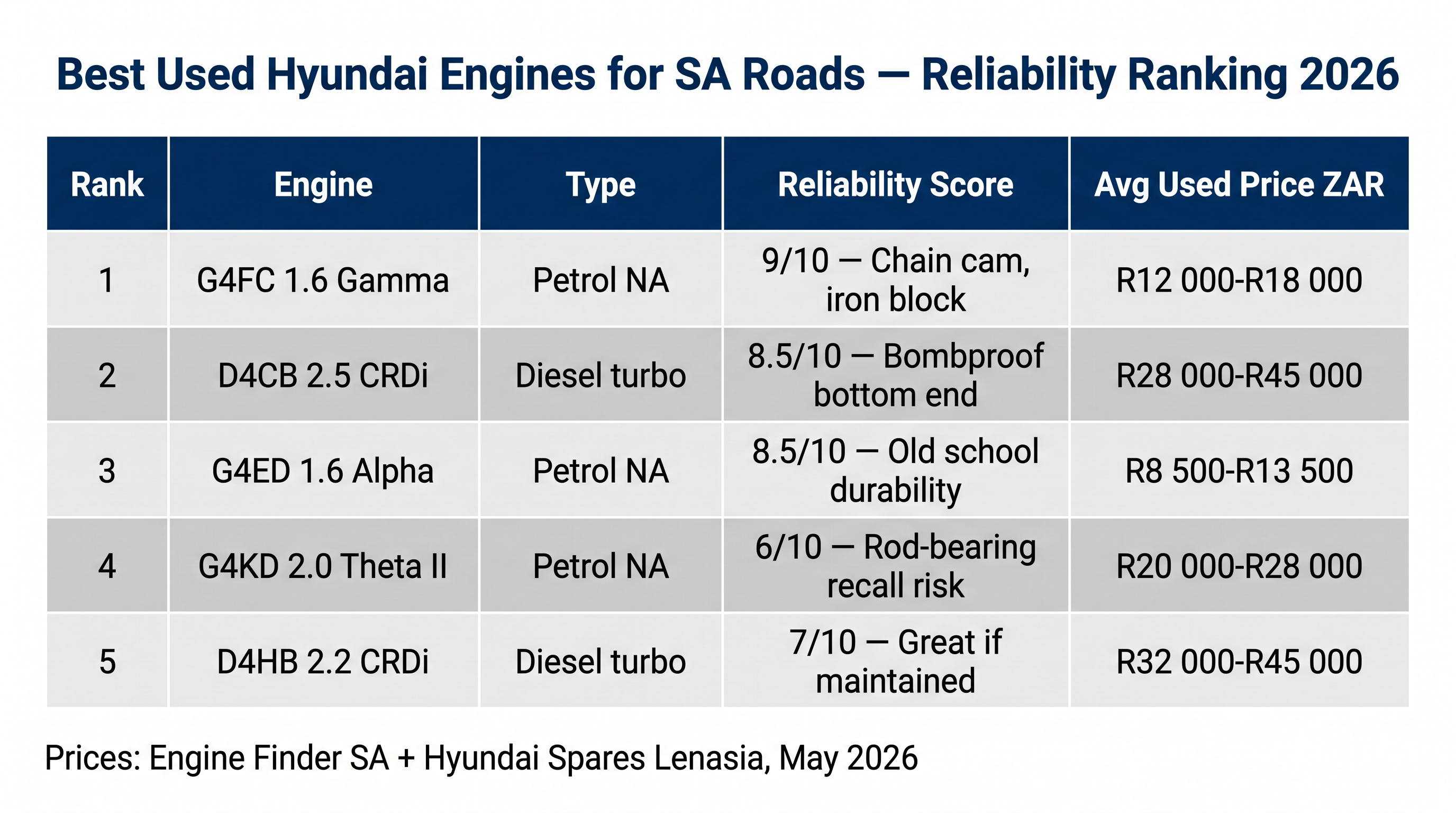

Used Engine Price Reference Table
| Engine | Capacity | Tested Used Price (R) | Reconditioned (R) |
|---|---|---|---|
| G4HC 1.1 Atos | 1.1 NA petrol | R8 500 - R12 000 | R18 000 - R22 000 |
| G4LA 1.2 Kappa | 1.2 NA petrol | R10 500 - R14 500 | R20 000 - R26 000 |
| G4ED 1.4/1.6 Alpha | 1.4/1.6 NA petrol | R8 500 - R13 500 | R18 000 - R26 000 |
| G4FC 1.6 Gamma | 1.6 NA petrol | R12 000 - R18 000 | R26 000 - R34 000 |
| G4FJ 1.6 T-GDI | 1.6 turbo petrol | R22 000 - R32 000 | R45 000 - R58 000 |
| G4KD 2.0 Theta II | 2.0 NA petrol | R20 000 - R28 000 | R45 000 - R65 000 |
| G6DC 3.3 Lambda V6 | 3.3 NA petrol | R35 000 - R50 000 | R72 000 - R95 000 |
| D4FB 1.6 CRDi | 1.6 turbo diesel | R18 000 - R26 000 | R38 000 - R52 000 |
| D4HA 2.0 CRDi | 2.0 turbo diesel | R26 000 - R36 000 | R52 000 - R70 000 |
| D4HB 2.2 CRDi | 2.2 turbo diesel | R32 000 - R45 000 | R65 000 - R85 000 |
| D4CB 2.5 CRDi | 2.5 turbo diesel | R28 000 - R45 000 | R55 000 - R78 000 |
| D4BB 2.6 NA Diesel | 2.6 NA diesel | R18 000 - R26 000 | R34 000 - R48 000 |
Prices verified May 2026 across SA used-engine market.
What To Demand From The Supplier
When you buy a used Hyundai engine from any SA yard, insist on:
- A compression test certificate — all four cylinders within 10% of each other
- The donor vehicle's VIN and mileage — should be physically traceable
- At least a 3-month limited warranty in writing
- Photographs of the engine before crating — bellhousing flange, head, sump
- Confirmation of accessories included — alternator, starter, AC compressor, power steering pump
- The ECU and immobiliser if needed — some engines won't run on a different car's ECU without recoding
We stock all of the above on our used engines page and supply with paperwork on every order.
Sources
- Engine Finder SA used-engine pricing index, May 2026 (https://www.enginefinder.co.za/)
- Our own yard inventory and customer service records, Hyundai Spares Lenasia, 2018-2026
- Hyundai service-history aggregated data from Reddys Metal Worx workshop records, Lenasia South
- AutoTrader SA used-engine listings, May 2026
