Short answer: a complete Hyundai ix35 automatic gearbox rebuild in SA costs R22 000-R32 000 including new clutches, solenoids, seals and a torque converter rebuild. A tested used A6MF1 6-speed swap costs R14 000-R22 000 fitted. A reconditioned unit with warranty runs R28 000-R45 000. The rebuild is worth it on a sub-180 000 km LM-generation; the used swap makes more sense on higher-mileage cars where everything else is consumable too.
Key Takeaways {#key-takeaways}
- The ix35 LM (2009-2015) uses the Hyundai A6MF1 6-speed automatic — built in-house, shared with Tucson LM, Sportage SL and others
- Symptoms of failure: slipping, harsh 1-2 shift, clunk into reverse, juddering torque converter, P0717 / P0750 / P0840 codes
- Real-world rebuild cost in SA: R22 000-R32 000 including torque converter
- Used drop-in unit: R14 000-R22 000 fitted
- ATF fluid change every 60 000 km dramatically extends life — most owners skip it
- The 7DCT in later models is a different story — different gearbox, different failure modes
Which Gearbox Are We Actually Talking About?
The Hyundai ix35 in SA shipped exclusively as the LM generation (2009-2015) before being replaced by the Tucson TL/NX4. The automatic option was the A6MF1 6-speed planetary automatic (sometimes coded F4A6 / 6MF1 in service documents). Built by Hyundai Powertech in Korea, this gearbox is shared across Tucson LM, Kia Sportage SL, Sorento, and Carens.
There is also the rarer A6LF1 / A6LF2 longitudinal variant in some rear-drive applications, and a few late ix35s shipped with a 6-speed manual M6CF1. This article focuses on the A6MF1 because it's by far the most common ix35 transmission in SA.
A6MF1 6-Speed Auto Gearboxes
We stock tested used and reconditioned A6MF1 gearboxes from ix35 and Tucson LM donors. Each unit comes with a road-test certificate, three-month minimum warranty and matched torque converter.
Why A6MF1 Gearboxes Fail
The A6MF1 is fundamentally a solid design but it carries three known wear patterns in SA service:
1. Solenoid pack contamination
The valve-body solenoids that control shift pressures clog with fine clutch dust if the ATF is never changed. Hyundai marketed this transmission as "lifetime fluid" — that is unequivocally wrong in SA conditions. By 120 000 km the fluid is darker than coffee and the solenoids are sticky.
2. Underdrive clutch wear
The K1 / K2 clutch packs on second and third gear take the brunt of acceleration. Worn friction plates show up as slip on the 2-3 shift, then as a flare on take-off, then as harsh engagement once everything is hot.
3. Torque converter shudder
The TCC (torque converter clutch) lining wears, producing a "shimmy" feeling at 60-80 km/h light throttle — sometimes confused with a wheel-balance issue. Confirm with a scan tool: TCC slip values above 30 rpm at lock-up command point to the converter.
Diagnostic DTCs
| Code | Meaning |
|---|---|
| P0717 | Input speed sensor — no signal |
| P0750 | Shift solenoid A circuit malfunction |
| P0755 | Shift solenoid B circuit |
| P0840 | Transmission fluid pressure sensor circuit |
| P0741 | TCC stuck off / performance |
| P2716 | Pressure control solenoid D electrical |
| P0867 | Line pressure too low |
A combination of P0741 with TCC shudder and dark fluid is the textbook end-of-fluid-life signature. If you catch it at this stage, a fluid + filter + solenoid clean may save the gearbox.

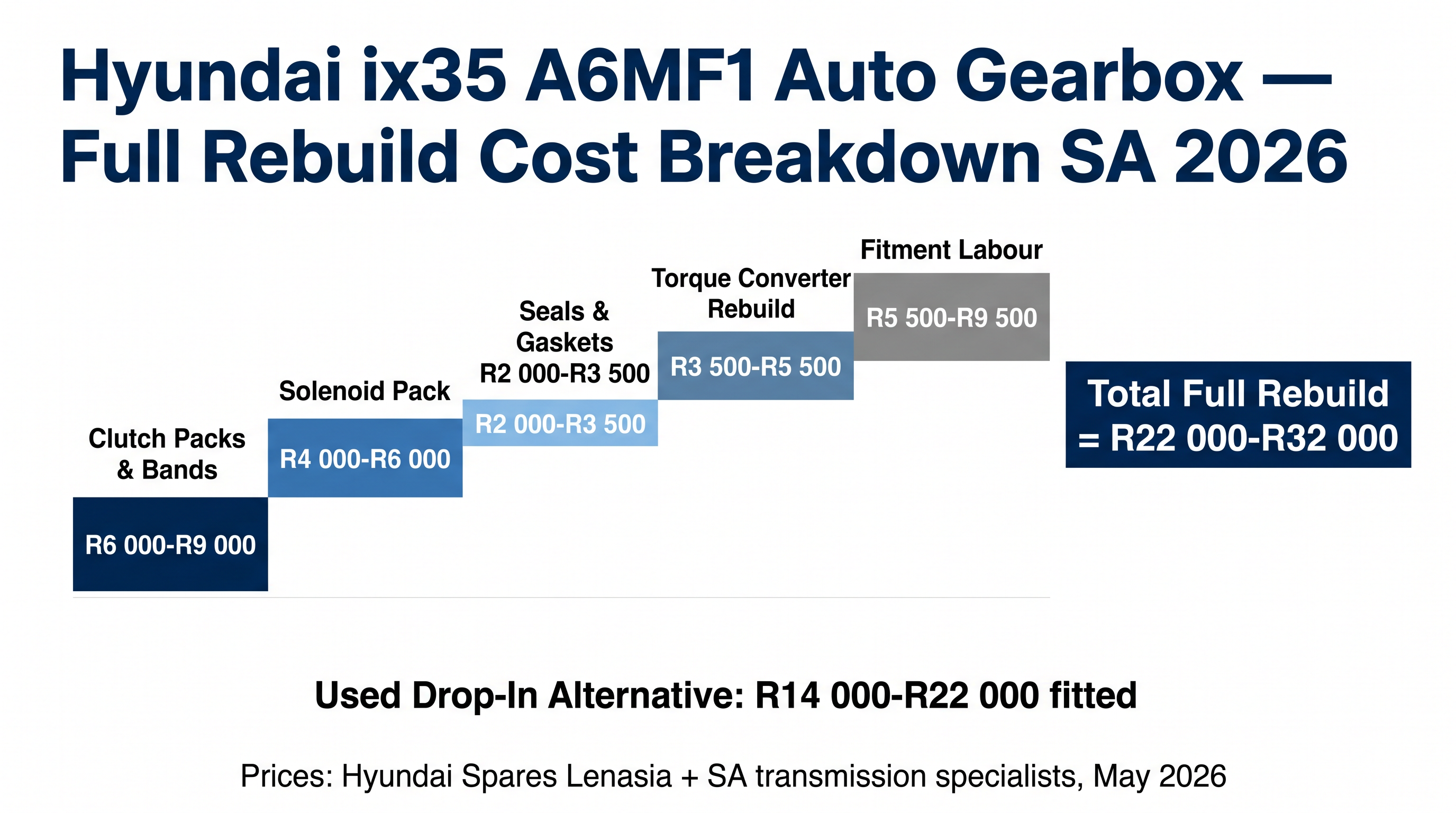

Cost Breakdown In SA
| Repair option | Price (R) | What's included |
|---|---|---|
| ATF fluid + filter service (preventive) | R2 500 - R4 200 | 4-6 L ATF SP-IV, new pan gasket, filter, drain & fill |
| Full ATF flush + filter | R4 500 - R6 500 | Machine flush, 10+ L fluid, filter |
| Solenoid pack replacement | R5 500 - R9 500 | New solenoid block + fluid + filter |
| Valve body recondition | R6 500 - R12 000 | Rebuilt valve body + new solenoids |
| Full rebuild | R22 000 - R32 000 | New clutches, bands, solenoids, torque converter rebuild |
| Tested used drop-in | R14 000 - R22 000 | Mileage-checked, road-tested, 3-month warranty |
| Reconditioned with warranty | R28 000 - R45 000 | New clutches + 6-12 month warranty |
| New OE Hyundai unit | R72 000+ | Order-in, 12-month warranty |
| Fitment labour only | R5 500 - R9 500 | 8-12 hours independent rate |
Prices verified May 2026 across SA transmission specialists and our own gearbox stock.
Rebuild Or Replace — How To Choose
We work through this decision matrix with customers daily:
Rebuild is the right call when:
- The car is under 180 000 km and well-maintained otherwise
- The failure is localised (slipping in one gear, not a catastrophic bang)
- You plan to keep the car for at least another 80 000 km
- A reputable transmission specialist can do the job
Used drop-in is the right call when:
- The car has high mileage (220 000+ km) and the rest is also tired
- You need the car back on the road within 2-3 days
- The donor unit is from a low-mileage accident write-off (best case)
- Budget is the hard constraint
Reconditioned is the right call when:
- The car is high-value (loan car, premium spec) and warranty matters
- You can wait 1-2 weeks for the unit to be built
- You want the longest realistic future life from the gearbox
Common Mistakes Customers Make
Topping up with the wrong ATF. The A6MF1 wants Hyundai SP-IV or an exact equivalent (Idemitsu ATF HMC SP-IV-RR). Any cheap "universal" Dexron-III will cook the gearbox within 20 000 km.
Ignoring the first slip. A 2-3 shift slip caught early can be saved by a fluid + solenoid service. Drive it for another year and you are into a full rebuild.
Buying the cheapest used unit on Gumtree. A used gearbox without a road-test report, fluid history or warranty is a R12 000 gamble. We've fitted three cheap "tested" units for customers in the past year that lasted under 5 000 km. Always demand paperwork.
Auto Box Service Kits And Parts
Filter, gasket, ATF SP-IV, drain plug washer — everything you need for a proper fluid service. We can supply solenoid packs and torque converters individually if a workshop wants to rebuild in-house.
Extending The Life Of Your A6MF1
If you have a healthy ix35 / Tucson LM auto, three things will stretch its life beyond 300 000 km:
- Drain-and-refill every 60 000 km with genuine Hyundai SP-IV (R2 500-R4 200 in SA)
- Replace the pan filter at 120 000 km — it traps fine debris and saves the solenoids
- Avoid towing in D — use the manual shift mode to hold a gear and reduce TCC slip
If your ix35 is starting to show symptoms — slip, judder, harsh engagement — get the codes scanned this week and book a fluid sample. Catching the failure at the solenoid stage saves you R15 000-R20 000 versus a full rebuild later.
If the engine is also tired, see our used Hyundai engines for SA roads guide for the matched-pair approach, and browse our Hyundai engines for sale page for current Theta II 2.0 stock. We stock tested used and reconditioned Hyundai gearboxes for sale matched to the ix35 A6MF1, with a 90-day warranty.
